● Checks Crown and Leg Height
● Checks Undercut Depth
● Checks Throat Size
● Checks Weld Length
● Checks Angle and Gap

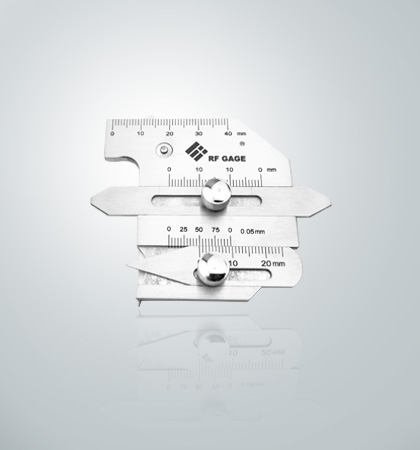

The Gauge is composed of stainless steel and can be used to obtain a wide range of measurements.
This gauge consists of five major components form which measurements can be taken.
They are the rotating fan, working edge, main ruler, side slide with point and center slide.
Some types of measurements that can be taken include but our not limited to butt weld height, undercut, angle of preparation or bevel, gap size, leg of fillet weld throat of fillet weld and the face of the butt weld.
|
Model No.
|
Measurement
|
Range
|
Graduation
|
Accuracy
|
|
WG-12B
|
crown height
|
0-10mm
|
1mm
|
±0.5mm
|
|
leg height
|
0-14mm
|
1mm
|
±0.5mm
|
|
|
undercut depth
|
0-5mm
|
0.05mm
|
±0.05mm
|
|
|
throat size
|
0-13mm
|
1mm
|
±0.5mm
|
|
|
weld length
|
0-40mm
|
1mm
|
±1mm
|
|
|
angle
|
90°-150°
|
5°
|
±1°
|
|
|
gap
|
0.5-5mm
|
1mm
|
±0.5mm
|
|
|
length
|
0-40mm
|
1mm
|
±0.5mm
|
