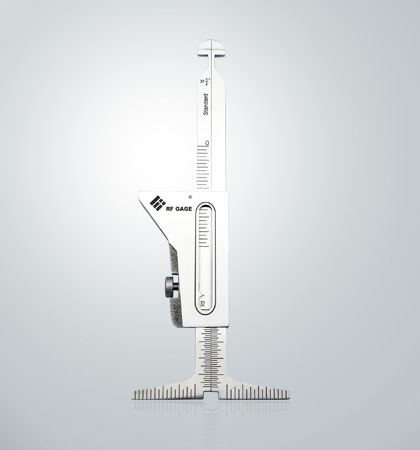

HI-LO Welding GaugeWG-06HILO Features: Changes from standard to metric Simply remove gauge body, turn scales over and replace body Measure internal misalignment Measure fit-up gap Measure bevel on end preparation Measure the crown height of welds Measure fillet weld size Measure scribe line, socket welds
  • Description
  • Details

• Changes from standard to metric

• Simply remove gauge body, turn scales over and replace body

• Measure internal misalignment

• Measure fit-up gap

• Measure bevel on end preparation

• Measure the crown height of welds

• Measure fillet weld size

• Measure scribe line, socket welds

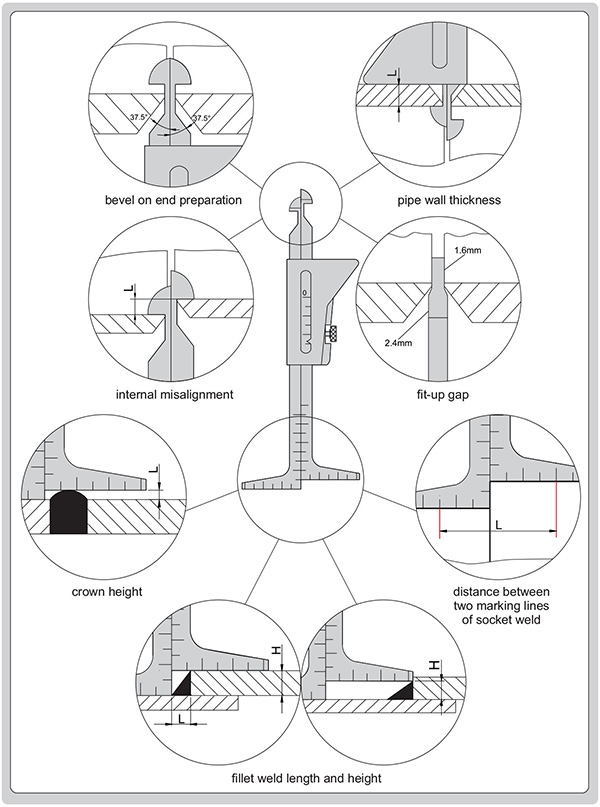

Model No.
Measurement
Range
Graduation
Accuracy
WG-06HILO
bevel on end preparation
37.5°

±1°
pipe wall thickness
0-45mm (0–1-3/4")
1mm (1/16")
±0.5mm
internal misalignment
0-35mm (0–1-3/8")
1mm (1/32")
±0.5mm
fit-up gap
1.6mm, 2.4mm

±0.1mm
crown height
0-35mm (0–1-3/8")
1mm (1/32")
±0.5mm

distance between two

marking lines of socket weld

0-60mm (0–2-3/8")
1mm (1/16")
±0.5mm
fillet weld length
0-30mm (0–1-1/4")
1mm (1/16")
±0.5mm
fillet weld height
0-35mm (0–1-3/8")
1mm (1/32")
±0.5mm
